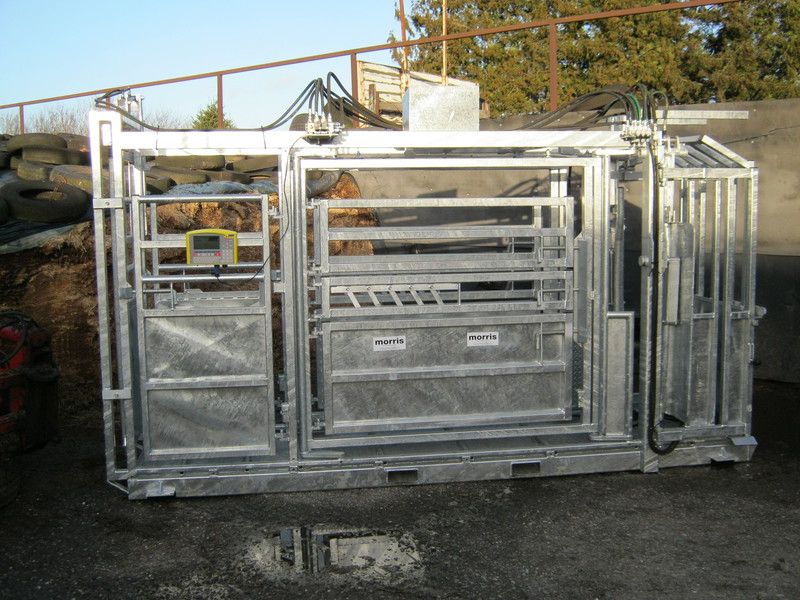

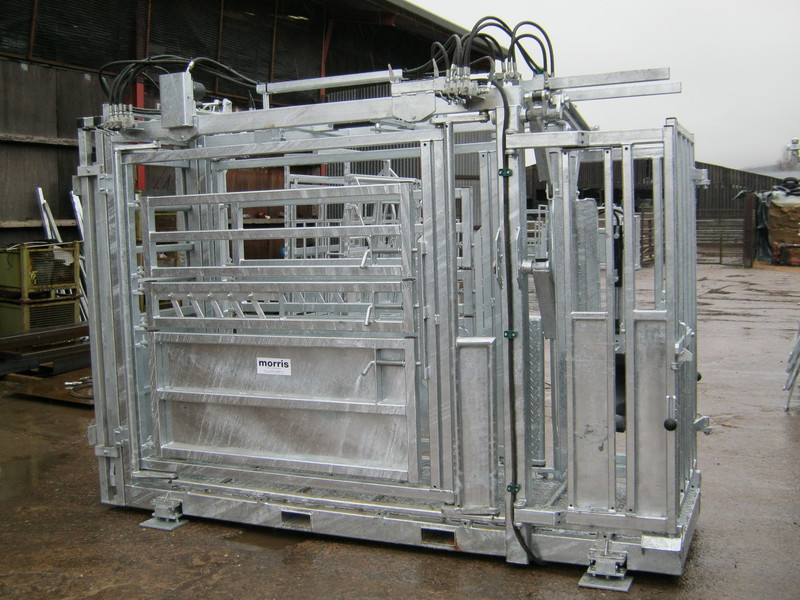

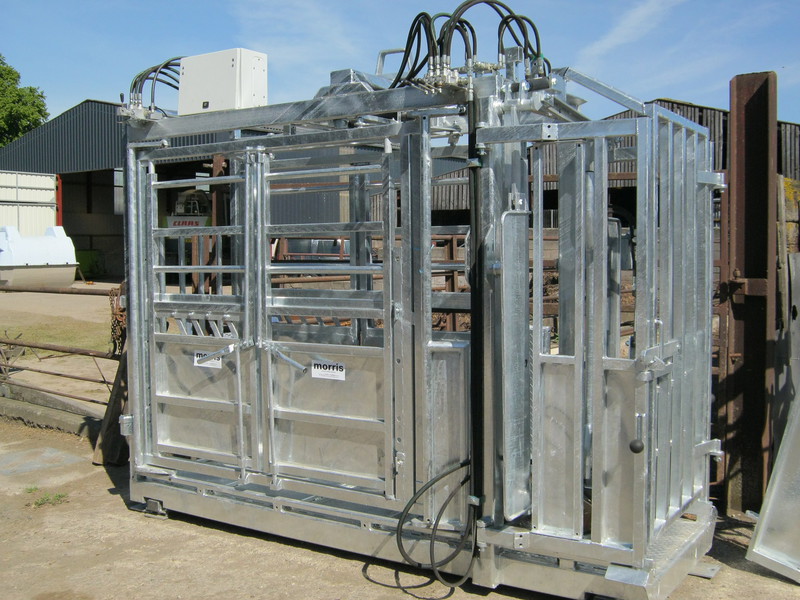

The morris Hydraulic Squeeze Crush

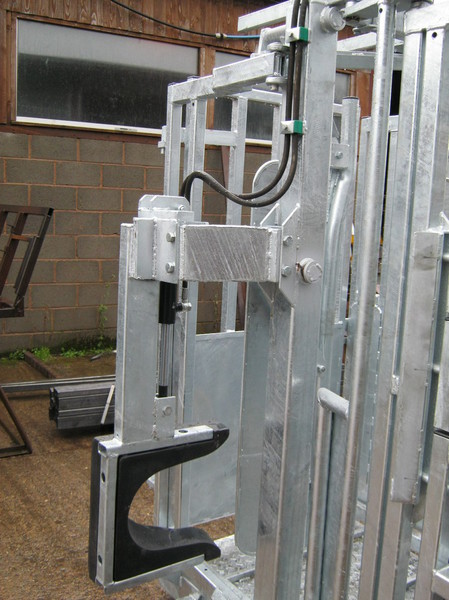

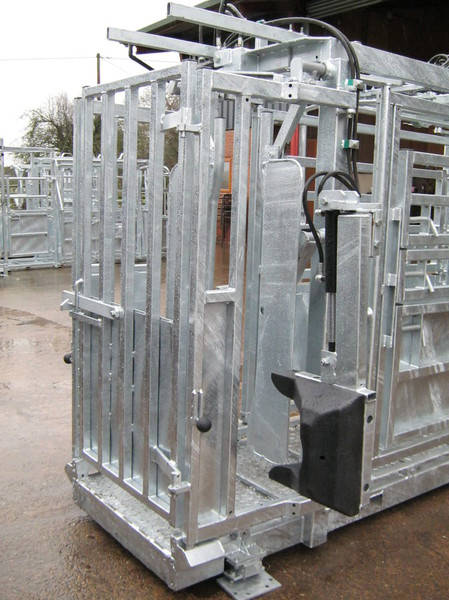

The substantial morris Hydraulic Squeeze Crush comes as standard with 4 hydraulic services to the Yoke, Super Scoop, Squeeze Sides and Rear Stop/Start Gates. They are operated by a simple lever control unit.



The squeeze sides gently, but effectively, put a light hold on the the animal encouraging it to be calm and still.



The hydraulics can be powered from a tractor or a hydraulic power unit. The power unit is a compact, quiet unit that runs on mains power supply (standard 240v/13 amp).



This crush can be made to your specifications with options including remote control, hydraulic rear sliding gate, hydraulic race gates, etc. etc



Specifications:

  • Overall Length - 2800 mm
  • Weight - 950 kgs (approx)
  • Inside Width - 400mm (min) - 760mm(max)
  • 3-Piece Front Gate
  • 3 wide opening side doors on each side
  • TB access facility
  • Sliding Rear Gate
  • Super Scoop

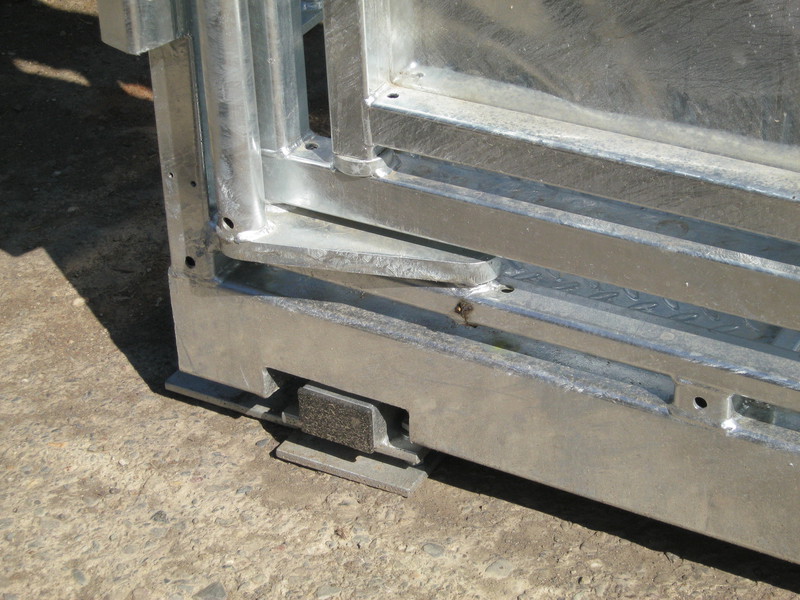

  • Integral Forklift Pockets in base
  • Ratchet Rump Bar
  • Chequer Plate Floor with Grip Bars
  • Heavy Duty Steel Construction
  • Hot Dip Galvanised Finish

Options:

  • Hydraulics to Sliding Rear Gate / Race Gates
  • Weigh Beams w/ digital display (1500kg x1kg increments)
  • Choice of Left or Right hand operation

Can be built into a Mobile Handling System
